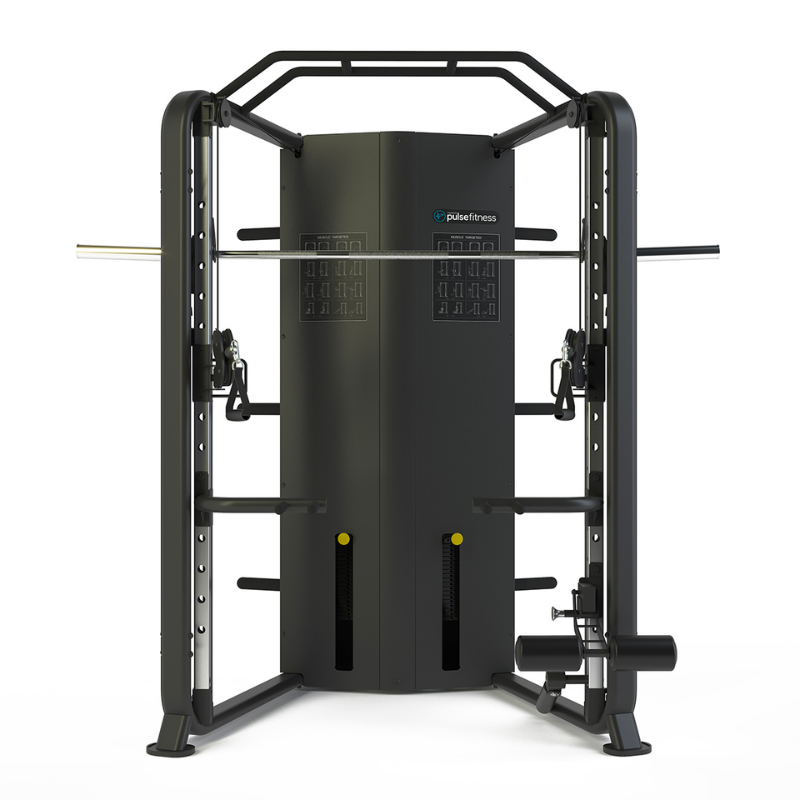

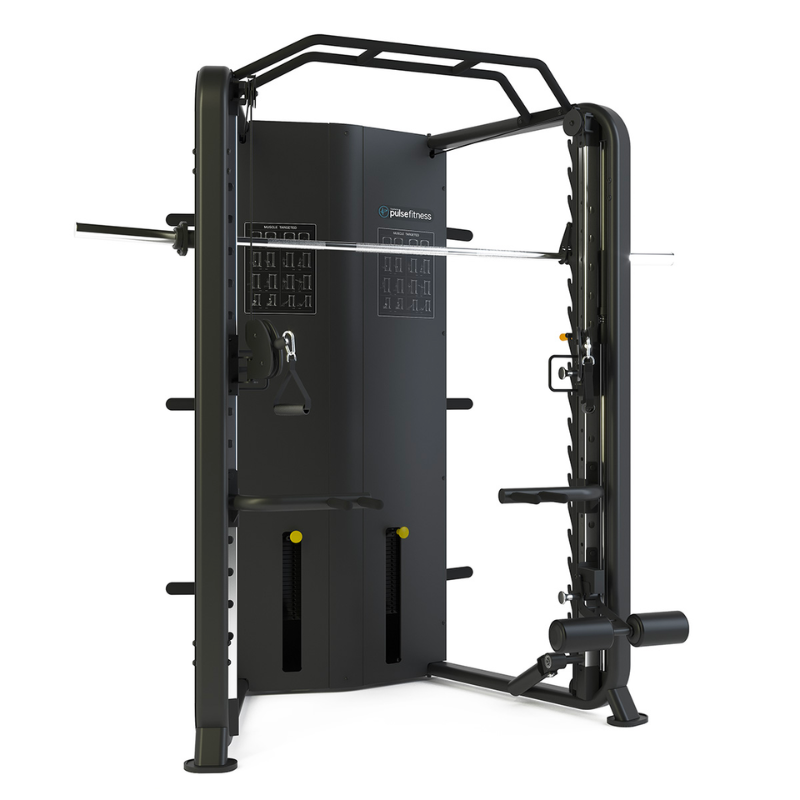

Elevate your fitness experience with the Multi-Functional Trainer Rack, a dynamic solution for every gym or fitness suite. This innovative equipment merges the functionality of a Dual Multi-Pulley, Half Rack, and Smith Machine into a single, space-efficient unit. Crafted for both novice and seasoned athletes, it enhances workout programs without overwhelming your space.

Experience the versatility of two 90kg weight stack towers, coupled with a comprehensive set of attachments including Stirrup Handles, Dual Dip Handles, J Hooks, and more, to revolutionise your training regime. The 870C's robust design, forged from heavy-gauge steel, assures durability and stability, even during intense workouts.

Prioritising safety and convenience, the Rack features anti-slip foot pads to protect floors and ensure a secure exercise environment. Its user-friendly design includes a low starting weight, a wide selection of weight plates, and colour-coded pins for effortless adjustments. With ergonomically designed handgrips and a full range of motion, it targets both upper and lower body muscles, boosting strength and flexibility.

Included Attachments:

• Stirrup Handles (x2)

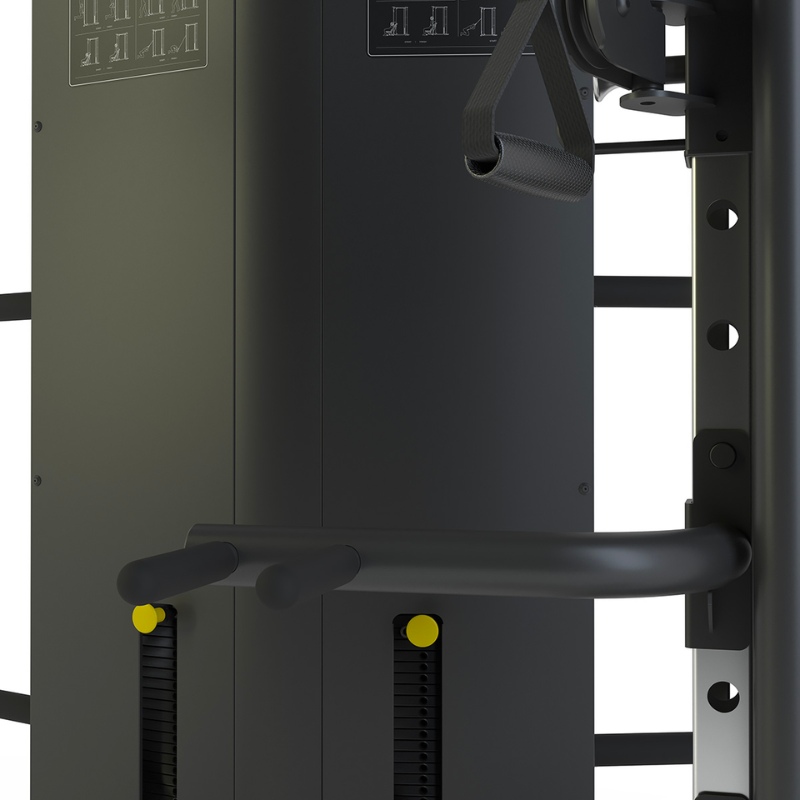

• Adjustable, Multi-Grip Rubber Covered Dual Dip Handles
• J Hooks

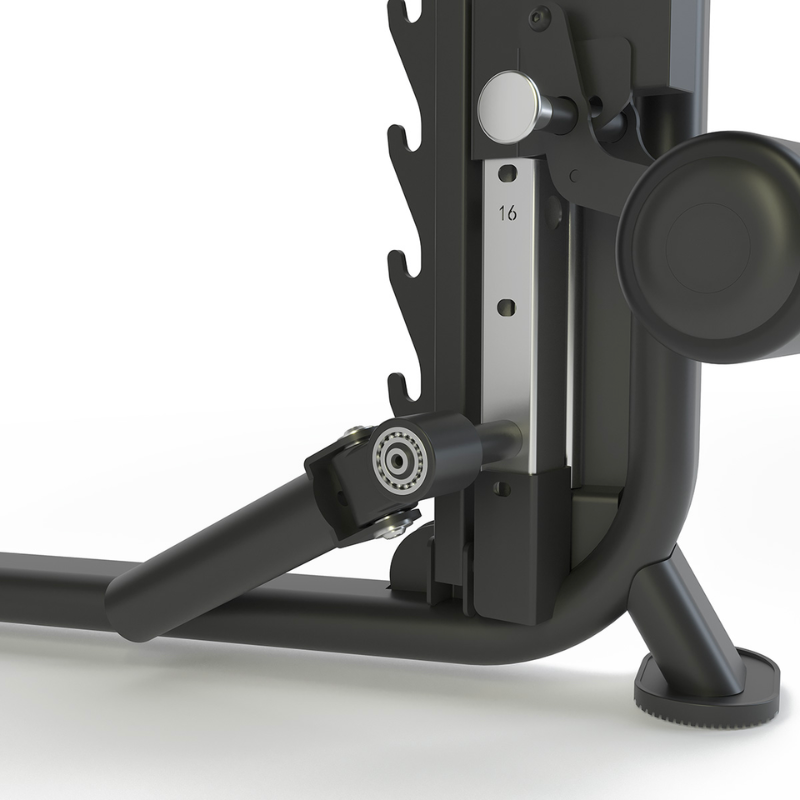

• Landmine

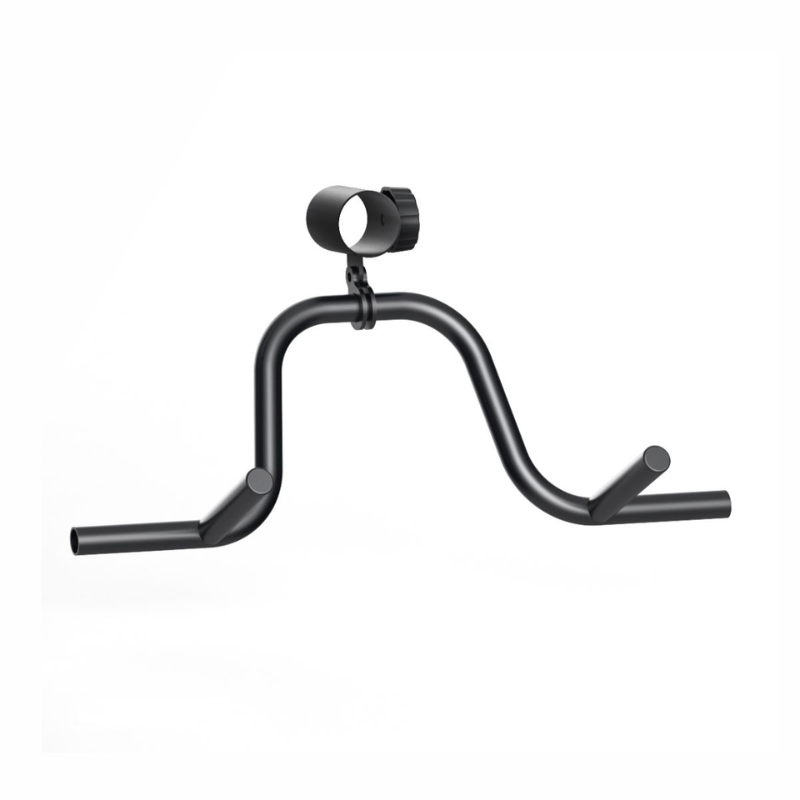

• Dual-Grip Landmine Bar

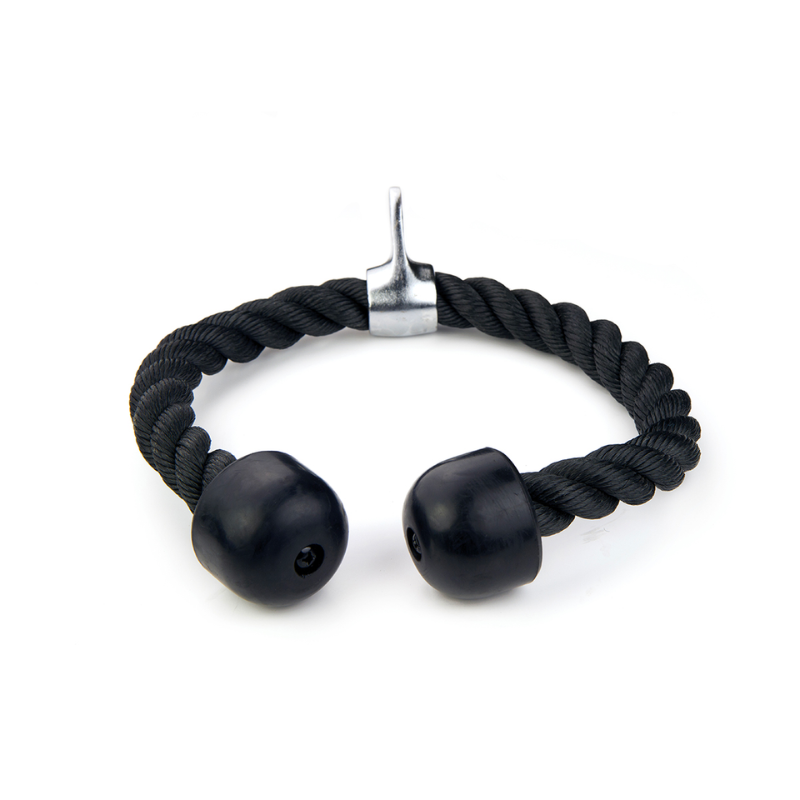

• Tricep Rope (with moulded Rubber Knobs)

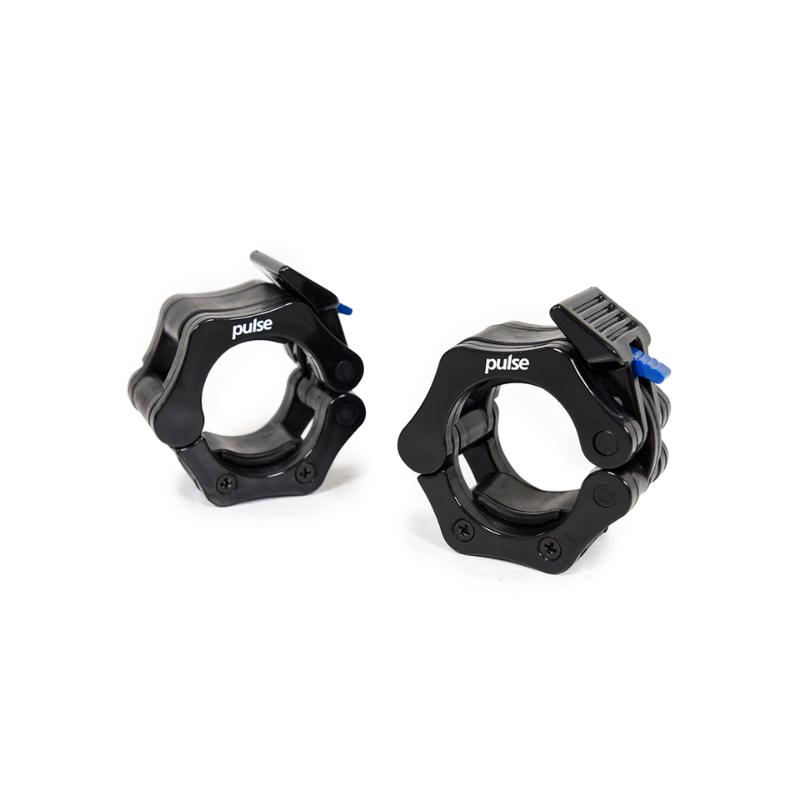

• Quick Lock Clamp Collars (x2)

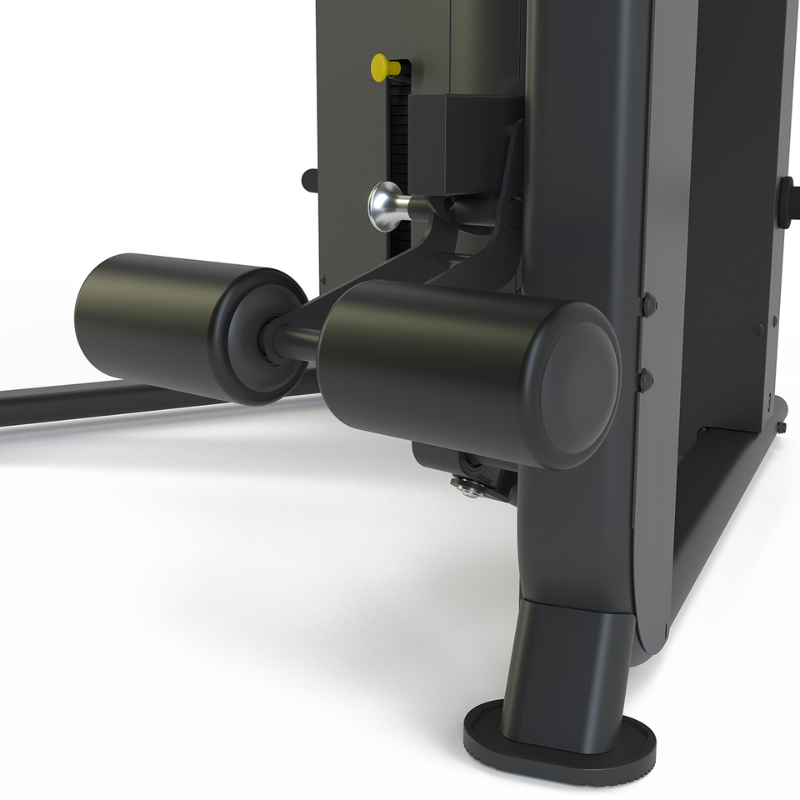

• Ankle Roller

NOTE -Powerbar and Olympic Plates sold separately.

Features & Specifications

FEATURES

1. Optimise space with a multi-functional design featuring a Dual Multi-Pulley, Half Rack, and Smith Machine.
2. Train diversely with two 90kg weight stack towers for comprehensive strength exercises.
3. Enhance workouts with pull-up beams supporting TRX for increased versatility.
4. Conveniently store Smith and Olympic bars and discs, streamlining your fitness space.
5. Broaden exercise variety with numerous attachments: stirrup handles, dip handles, J-hooks, and more.
6. Robust steel build guarantees lasting stability and endurance.
7. Improve safety and floor protection with non-slip foot pads.

PRODUCT DIMENSIONS (L x H x W)

Length: 219.7cm / 86-1/2”
Height: 225.8cm / 88-7/8″
Width: 125.3cm / 49-5/16″

WEIGHTS

Weight: 428kg / 943.6lbs.
Maximum User Weight: 180kg / 397lbs.

WARRANTY

Standard 1 Year warranty.

Technical Specifications

Structure:

• Frame: Commercial quality 14 gauge (2mm) steel for exceptional stability and structural integrity.
• Protection: Grit blasted, zinc pre-treated, furnace baked, heat-cured, and electrostatically epoxy powdered for maximum corrosion resistance and durability.
• Weight Stack Tower: Fully enclosed for user safety.

Operation:

• Weight Stack Tower: Enclosed, with a 90kg capacity, magnetic and tethered weight stack pin, and variable increment weight plates.
• Guide Rods: Steel, polished with corrosion-resistant chrome plating.
• Weight Stack Suspension: Rubber bumper damping system for smooth operation.
• Cable Transmission: Preformed, braided stainless steel cable rated over 600kg/1322.80lbs, lubricated, nylon-coated.
• Pulleys and Bearings: Nylon reinforced with fiberglass, deep V-grooved for secure cable seating; precision ground bearings with sealed ball bearing races; solid steel pivot axles with bronze bushings.
• Cable and Pulley Ratio: 2:1.
• Hand-Grip Assembly: Positioned for neutral wrist position, slip-resistant, non-absorbing, wear-and-tear resistant material.

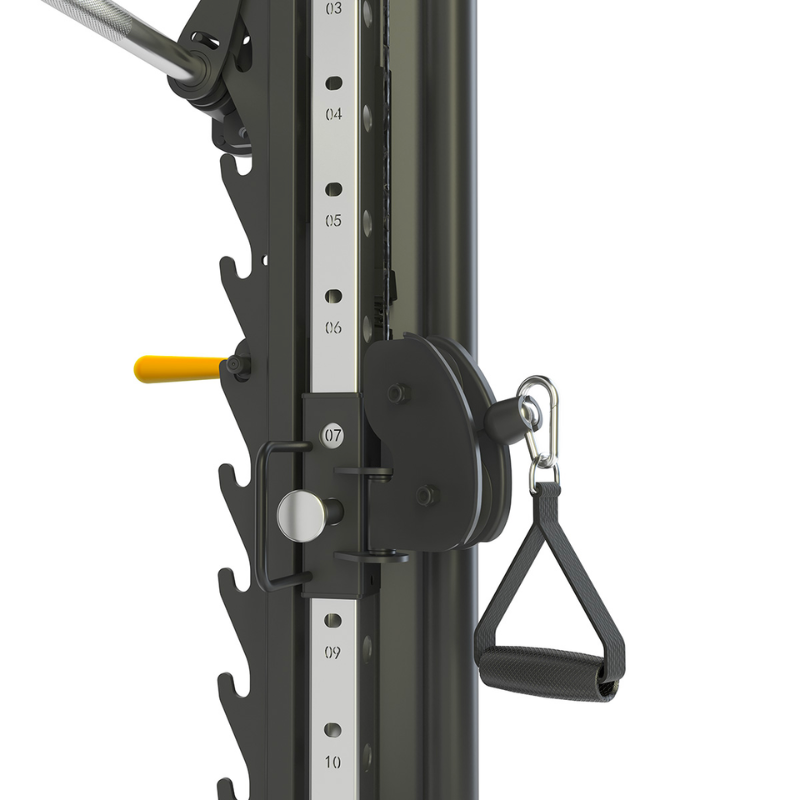

• Variable Height Pivotal Pulley: Suitable for upper and lower limbs, and trunk musculature exercises.
• Range of Motion: Full and natural range, enhancing flexibility and muscle performance.
• Smith Machine Powerbar: 30mm knurled grip with sealed bearings and multi-hook options.
• Pull-Up Cross Beams: Multiple-grip, chin-up handles with TRX support.
• Olympic Plate Storage Posts: 6 posts with durable Polypropylene (PP) finish.
• Integrated Storage: For easy access to powerbars (x2).
• Mouldings: High-impact, easy to clean thermoplastic housings; durable rubber coverings.

Attachments:

• Stirrup Handles (x2), Adjustable Multi-Grip Dual Dip Handles, J Hooks, Landmine, Dual-Grip Landmine Bar, Tricep Rope with Rubber Knobs, Quick Lock Clamp Collars (x2), Ankle Roller; all connected via commercial grade carabiners.

Adjustments:

• Manual Adjustments: Easy-grip, pull spring-loaded lock-pins; hardened plunger, chrome plated.

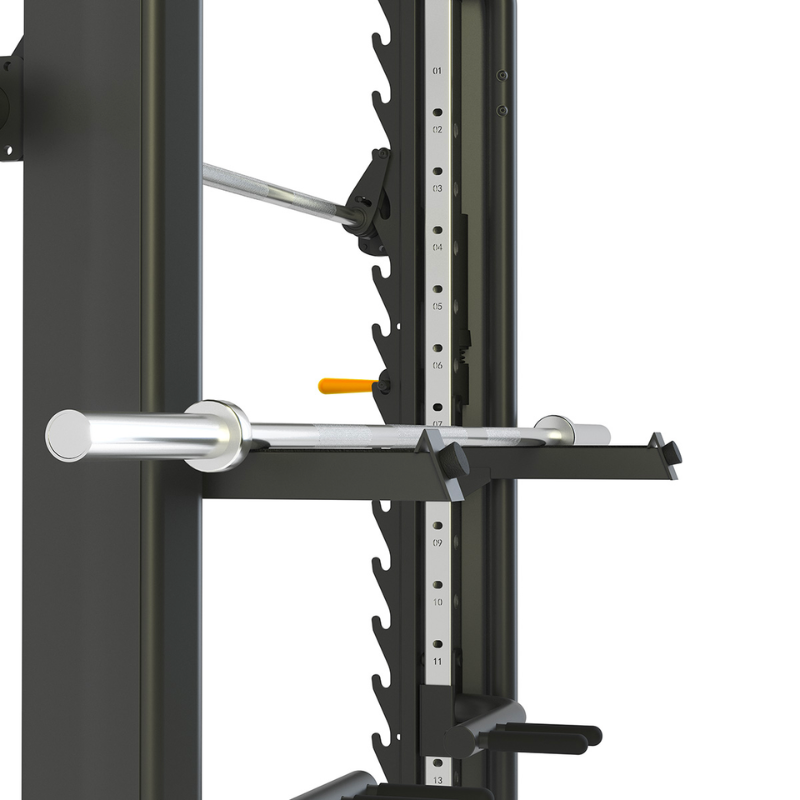

• Frame Adjustment: Laser-etched and numbered half rack modular frame uprights.
• Alignment: Perfect body and machine alignment to reduce injury risk.
• Multiple Start and Grip Positions: For diverse toning and bodybuilding workouts.

Instructions:

• Ease of Use: Simple weight selection and adjustments from the exercise position.

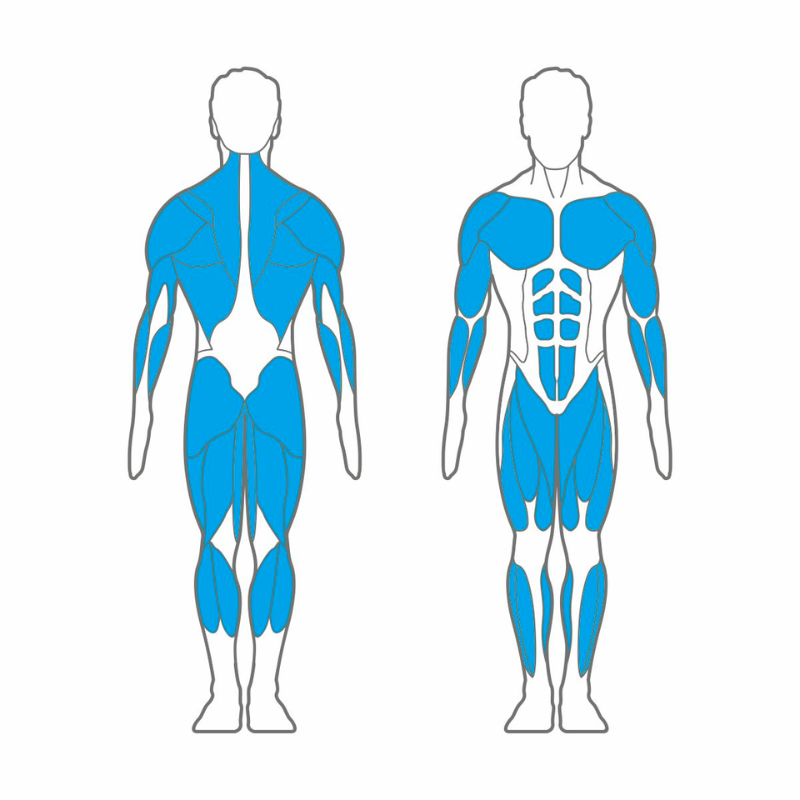

• Graphic Information Panel: Step-by-step instructions, exercise setup, operating procedure, start/finish positions, targeted muscle groups.

Comfort:

• Upholstery Construction: Long-lasting, easy-to-clean, high resistance to abrasion, bacteria, disinfectant, mildew, oil, and stains. Puncture and wear-resistant vinyl upholstery.

Safety:

• Moulded Plastic Foot Pads: Protect polished floors and enhance safety.

Documents

• Product Specification
• Owner's Manual
• Exercise Chart - L/H
• Exercise Chart - R/H
